ThermalBuck Outperforms Wood Bucks 2:1 – Thermal Transfer Testing

Improving the energy-efficiency of new and existing construction has long been a focus of the building industry. When it comes to insulation, exterior is the choice of many architects and builders, because it eliminates the thermal bridging through the studs.

However, continuous insulation presents its own unique challenges with installing windows and flashing the rough openings. The mounting point is no longer flush with the sheathing, it must be extended out to meet the exterior insulation depth. Rough openings are always a weak spot for potential water infiltration – and extending the mounting point for windows compounds the problem.

Until ThermalBuck hit the market, there really wasn’t a good way to insulate and create a thermal break around the mounting points of windows & doors. The traditional method to bump out windows was to build a wood window buck. Wood does extend the mounting point, but it doesn’t hold up well to moisture, and it has a low insulating value. With an r-value range of 4.4 per inch, ThermalBuck is a better insulator than wood. But how much? We performed some third-party testing to find out.



ThermalBuck installation vs. wood buck installation - thermal break

Thermal Transfer Performance: ThermalBuck  vs. Wood Buck

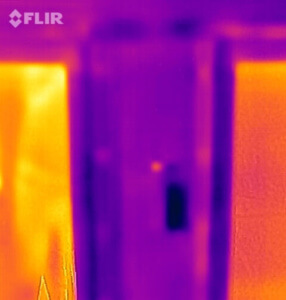

Using thermal imaging, we recorded the performance of ThermalBuck against a traditional wood buck in a controlled environment. In the two mock-ups below, three temperature sensors were placed on both the ThermalBuck installation (l) and the wood buck installation (r). The temperature condition on the exterior of the structure was -6.67 ºF, and the indoor of the structure 72.76 ºF.



Performance -Thermal Image wood buck vs. ThermalBuck           thermalbuck vs. wood window buck

These photos show two window installations side by side. (l) ThermalBuck (r) traditional wood buck.



54% More Heat Transfer with Wood vs. ThermalBuck

On the exterior of the structure (point A) the wood buck looses 7.88 ºF, or 14.55 ºF total degrees from the outside temperature. ThermalBuck only loses .11 ºF , or 6.78 total degrees from the outside temperature. The wood window buck allows twice as much energy to escape, while the window installation with ThermalBuck is effectively limiting thermal bridging.

thermalbuck vs wood buck thermal transfer testing drawings
thermalbuck insulating value data charts with Rockwool photo vertical



ThermalBuck High-Performance window buck creates a significant thermal break at the mounting points of windows & doors. Using ThermalBuck as part of your continuous insulation solution is an effective way to limit the amount of thermal bridging that occurs through your building envelope.

To learn more about thermal bridging, see what the experts have to say at greenbuildingadvisor.com


Editor’s Note: This article was updated in July 2018. The testing results and thermal images were not changed.
